RF Cabin Systems

ARTENG YAPI & HEALTHCARE RF Shielded Cabins provide a safe and long-lasting solution for MRI systems, offering superior electromagnetic shielding performance and robust structural design.

Our panels feature a composite sandwich structure, produced by pressing specially treated stainless steel sheets onto MDF on both sides.

  • High surface rigidity and torsional resistance
  • Impact resistance and no sagging over large spans
  • Excellent corrosion resistance

Our RF cabins are compliant with the IEEE 299 standard:

  • Magnetic shielding attenuation: > 100 dB in the 1 – 30 MHz range
  • Electrical shielding attenuation: > 100 dB in the 30 – 160 MHz range
  • Insulation resistance between shield and ground: > 3 kΩ

Arteng RF Shielded Cabins deliver both high technical performance and optimized installation time and cost, providing a durable and reliable solution for healthcare facilities.

Custom RF cabin production using copper or aluminum is available for project-specific requirements.

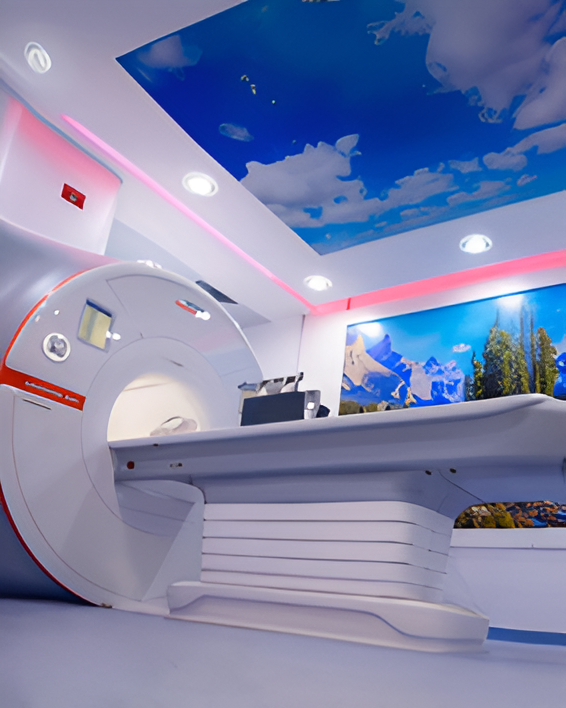

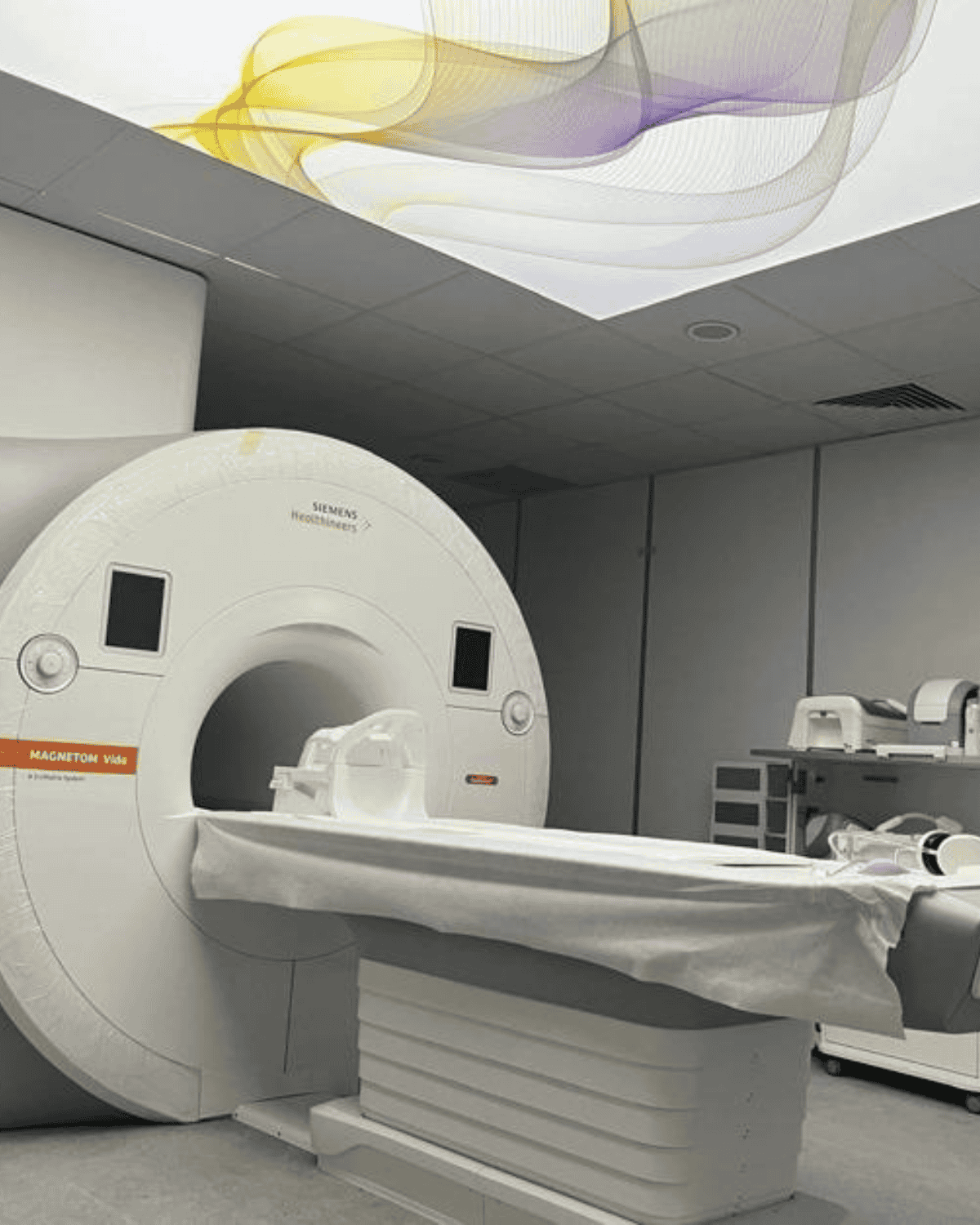

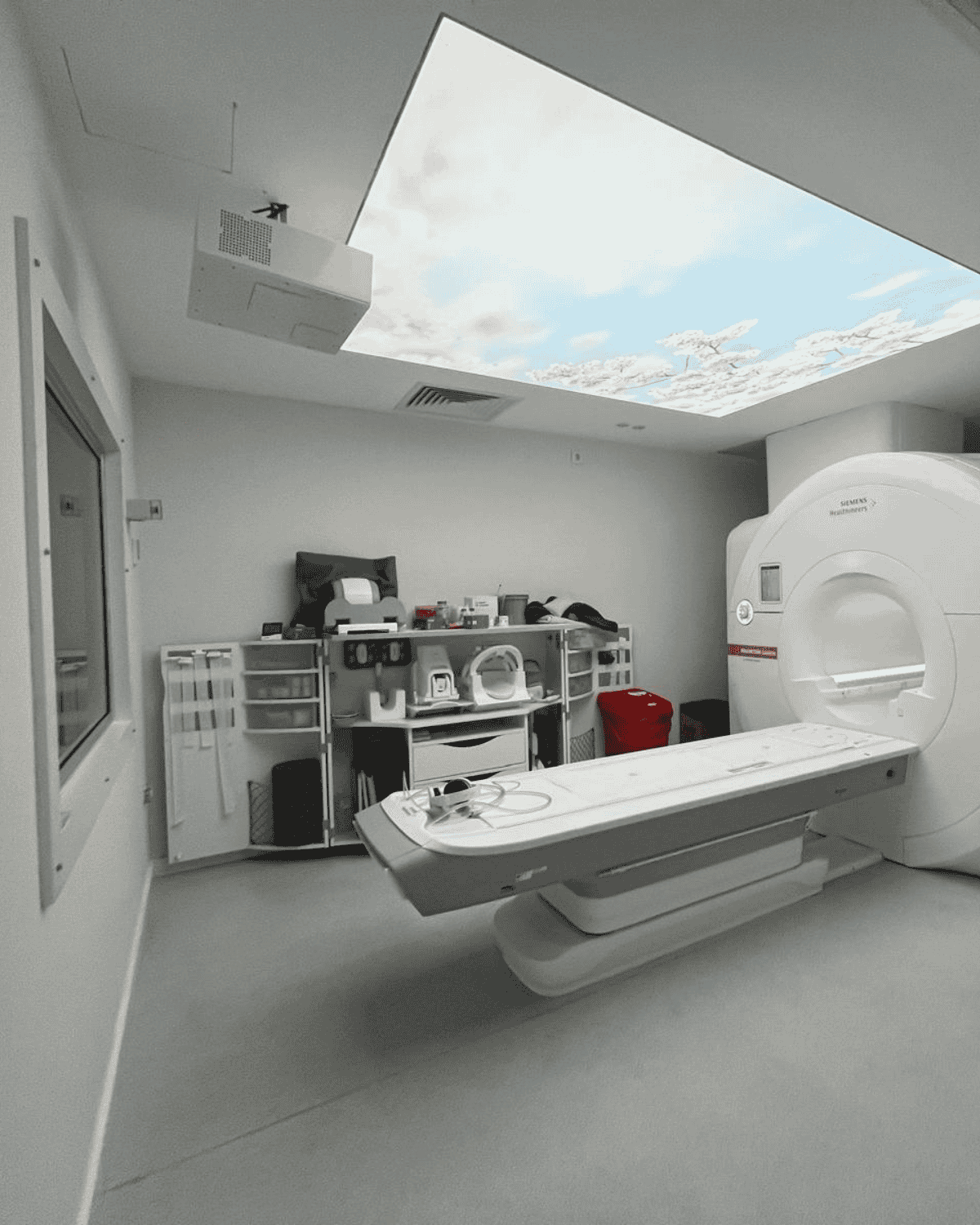

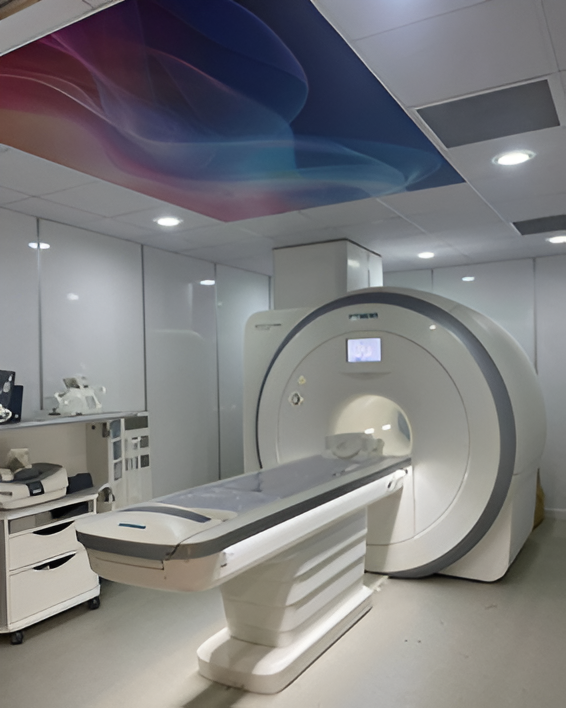

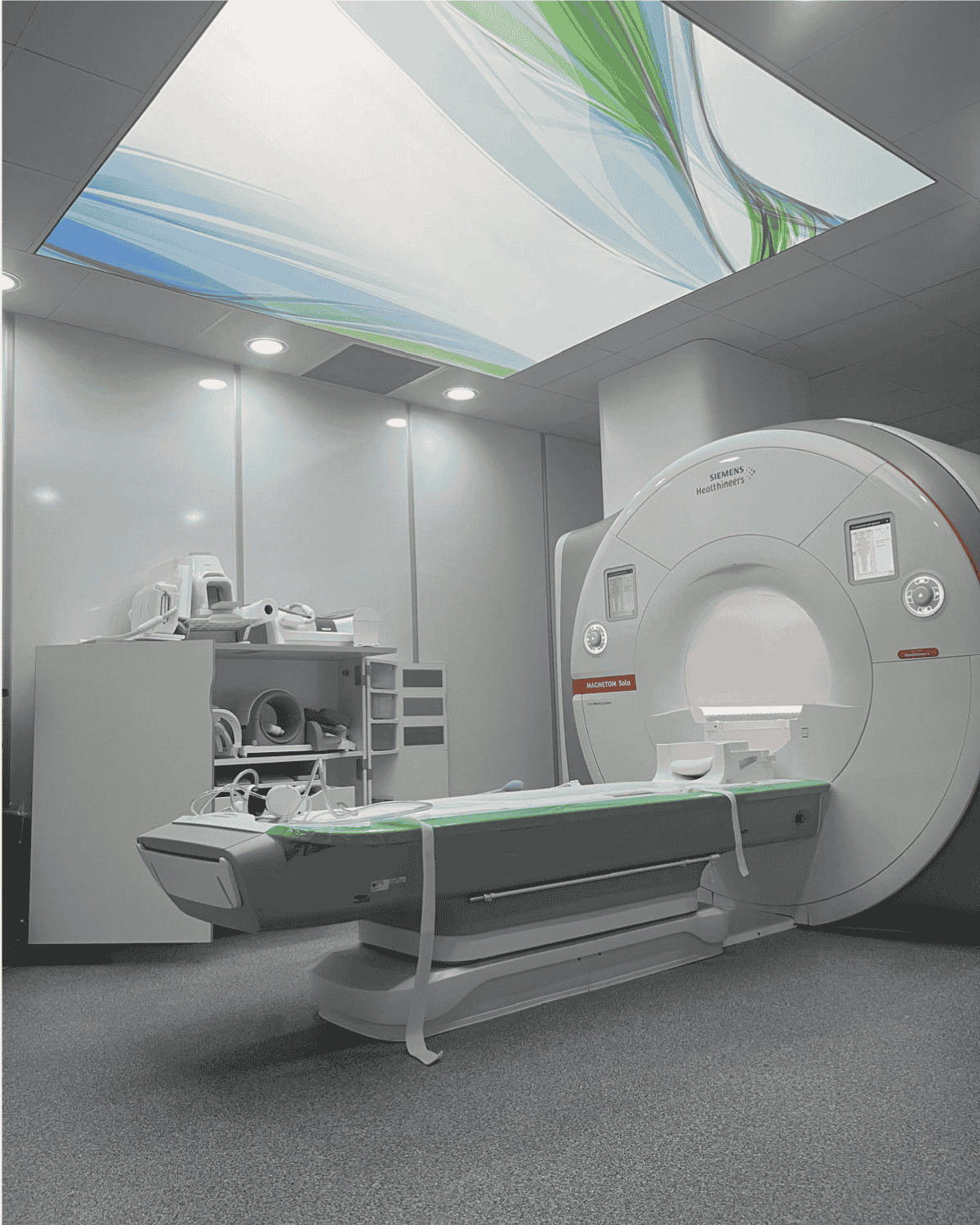

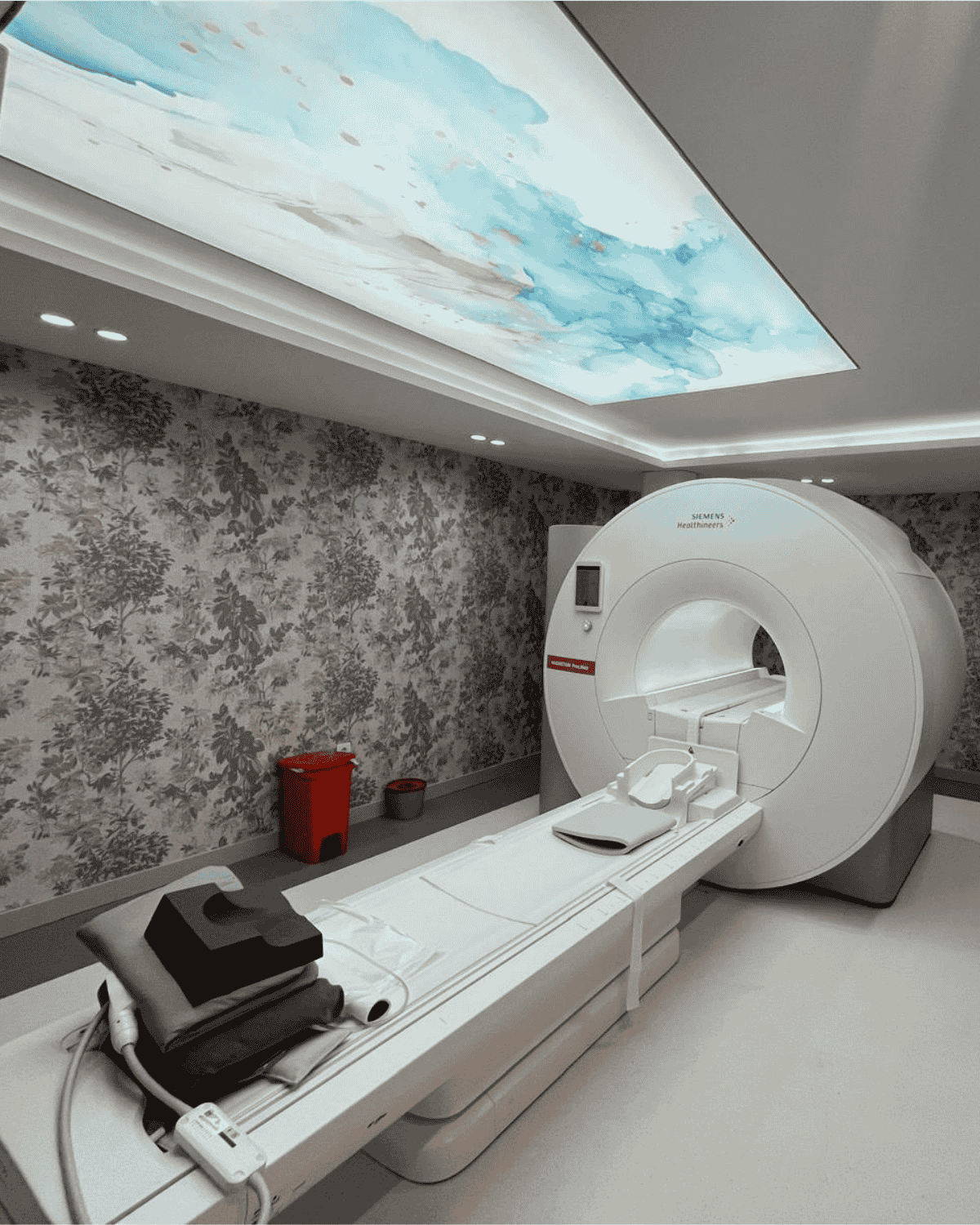

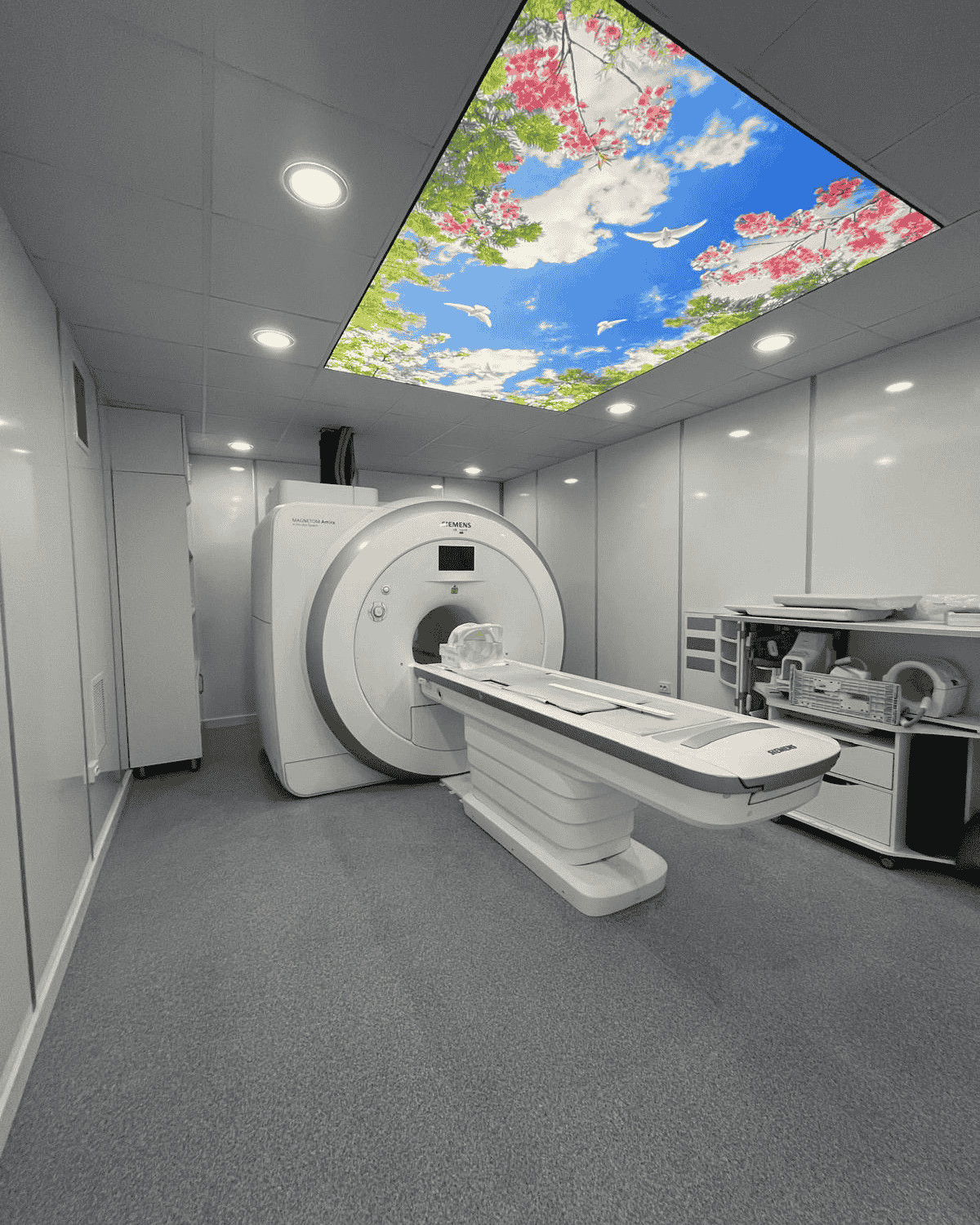

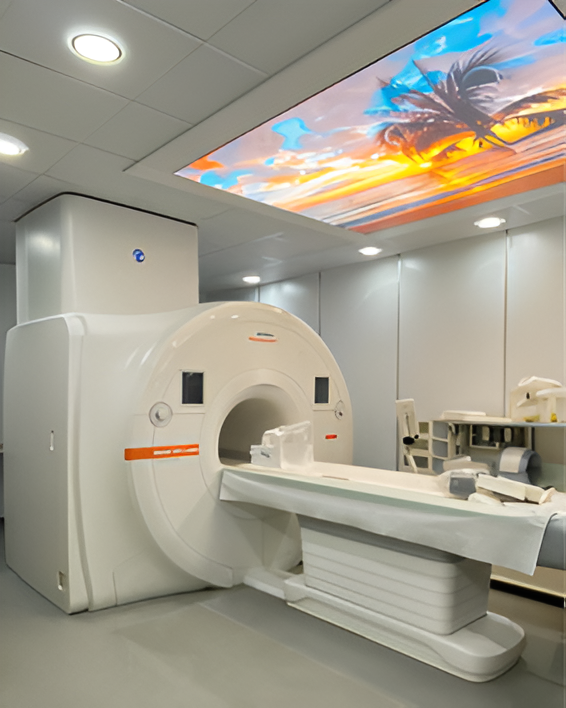

  • MRI Rooms in Hospitals and Imaging Centers
  • Mobile Imaging Units
  • Mobile Hospitals and Clinics
  • According to the IEEE 299 standard:
  • Magnetic shielding attenuation value: > 100 dB in the 1–30 MHz range
  • Electrical shielding attenuation value: > 100 dB in the 30–160 MHz range
  • Floor insulation: 3 mm membrane
  • High RF tightness performance
  • Provides a quiet and comfortable working environment in the MR room
  • Modular and Flexible Design: Enables fast installation and can be adapted to different room sizes and site conditions
  • Acoustic insulation
  • Durable Materials: Resistant to corrosion and deformation thanks to special stainless-coated steel and high-quality MDF panels
  • Underfloor insulation materials
  • Easy Maintenance and Service: Modular design allows easy part replacement and maintenance
  • Baseplate production
  • Quench pipe integration
  • Filter panel opening
  • MR-compatible 600×600 mm LED lighting
  • MR-compatible LED lighting panel
  • RF EMI filter supply: 16A, 25A, 50A
  • MR room RF glass: 100×120 cm or custom dimensions
  • MR room RF door: standard or pneumatic options, 1.22 m × 2.13 m standard dimensions (custom sizes available)
  • Magnetic RF door switch
  • EMI/RFI-shielded waveguide air vents
  • Custom stainless steel piping for medical gas and injector cable entry, diameters 7 cm & 5 cm
